General
Yes
-
Year
1981
-
Manufacturer
CESSNA
-
Model
T210N
-
Condition
New
-
Serial Number
21064343
-
FlightRules
VFR/IFR
-
Registration #
N210PW
-
Based at
KJZI
-
Airframe
Yes
-
Total Time
5060
-
Airframe Notes
Annual Due: March 2024
Pitot/Static/Altimeter Due: July 2025
Hydrostatic Test Due: April 2025
ELT Battery Due: July 2025
Fuel Capacity: 122 Gallons
Useful Load: 1433 lbs.
Recent Maintenance
New Rear window in 2016
Screw Kit in 2016
New Magnetos in 2017
Overhaul Engine Driven fuel pump in 2017
Overhaul Boost Pump in 2017
Overhaul Starter Adapter and Starter in 2017
New Hydraulic Power Pack in 2017
New Master Switch in 2017
-
Engine
Yes
-
Engine 1 Make/Model
Continental TSIO-520-R
-
Engine 1 Time
1050 Since Major Overhaul by RAM in 2018
-
Engine 1 Time Between Overhaul
1050
-
Engine 1 Notes
310hp
Fresh Top Overhaul - 6 New Millenium Cylinders
1015 Since Turbo Charger Overhaul by RAM in 2018
1600 TBO
Turbo Gamijectors
New Superior Steel Cylinders at Overhaul
RAM Modifications: Cylinder Modifications, Crankcase, Vacuum Pump Cooling Shroud,
Slick Pressurized Magnetos, Induction Manifold Sniffle Valve System, Oil
Breather System, Battery Box Vent System
-
Props
Yes
-
Number of Blades
3
-
Prop 1 Manufacturer
Hartzell Top Prop
-
Prop 1 Overhaul Time
350 Since New
-
Prop Notes
Hartzell Top Prop Conversion
Heated Props
-
Modifications/Conversions
Yes
-
Avionics
Yes
-
ADS-B Equipped
Yes
-
WAAS
Yes
-
LPV
Yes
-

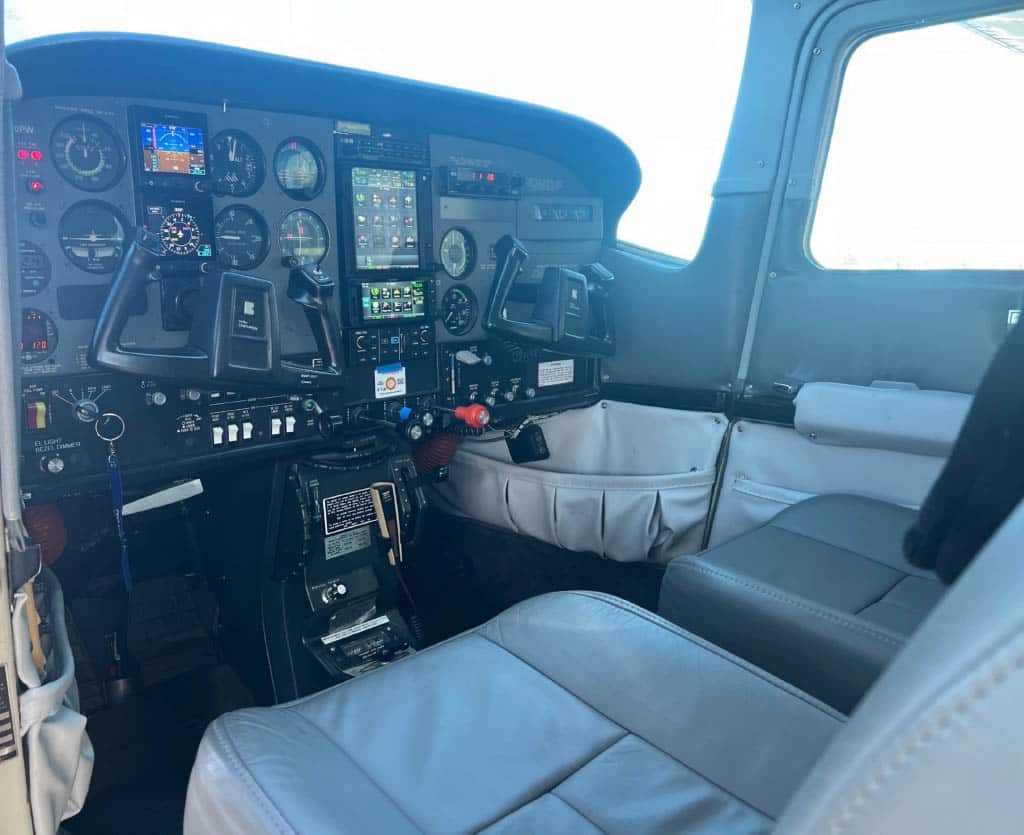

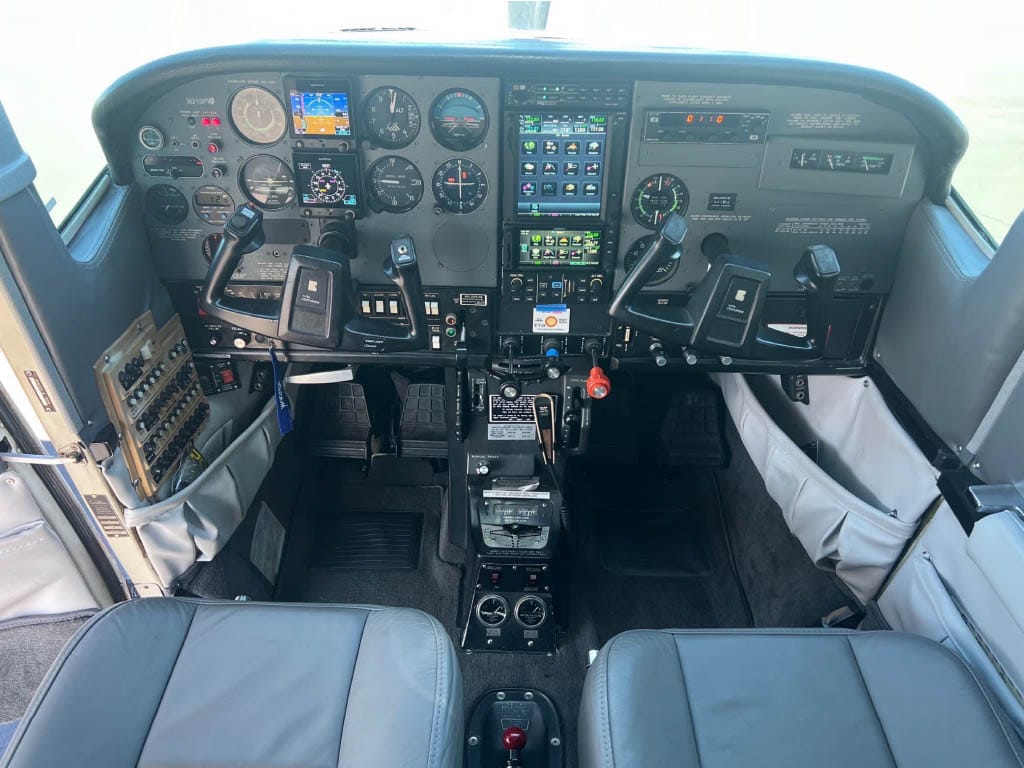

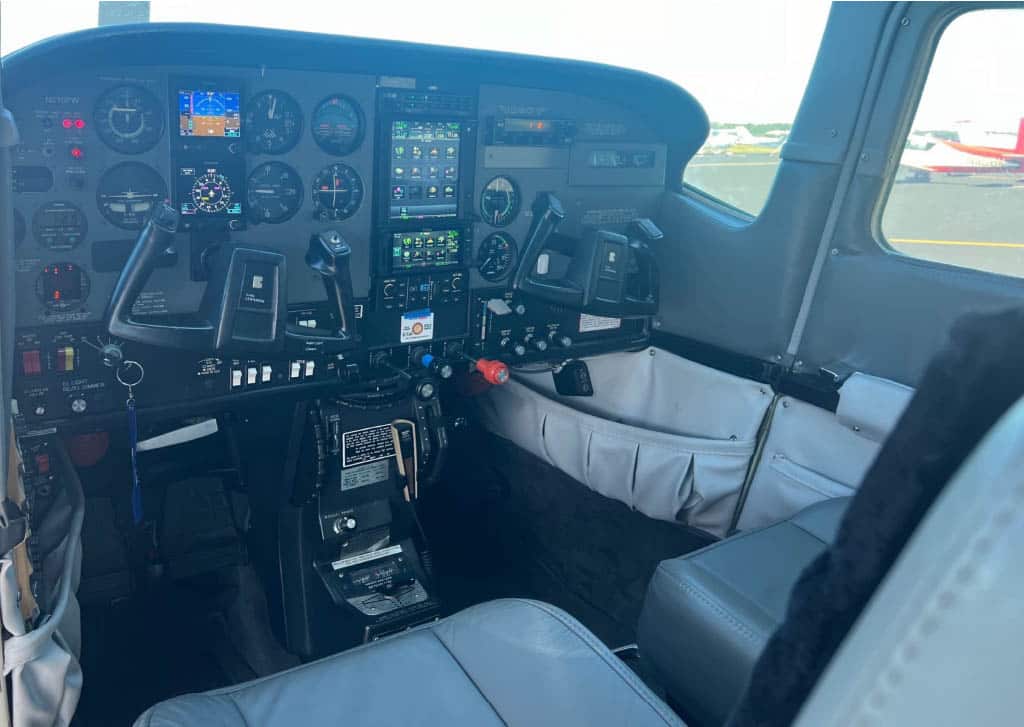

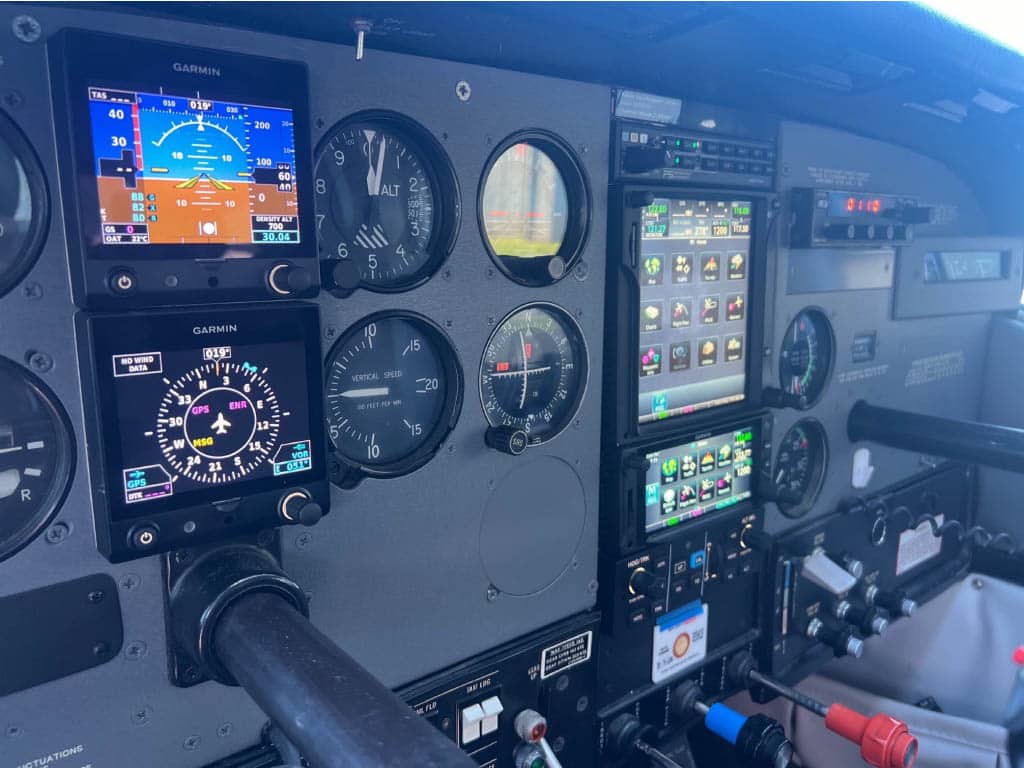

Avionics/Radios

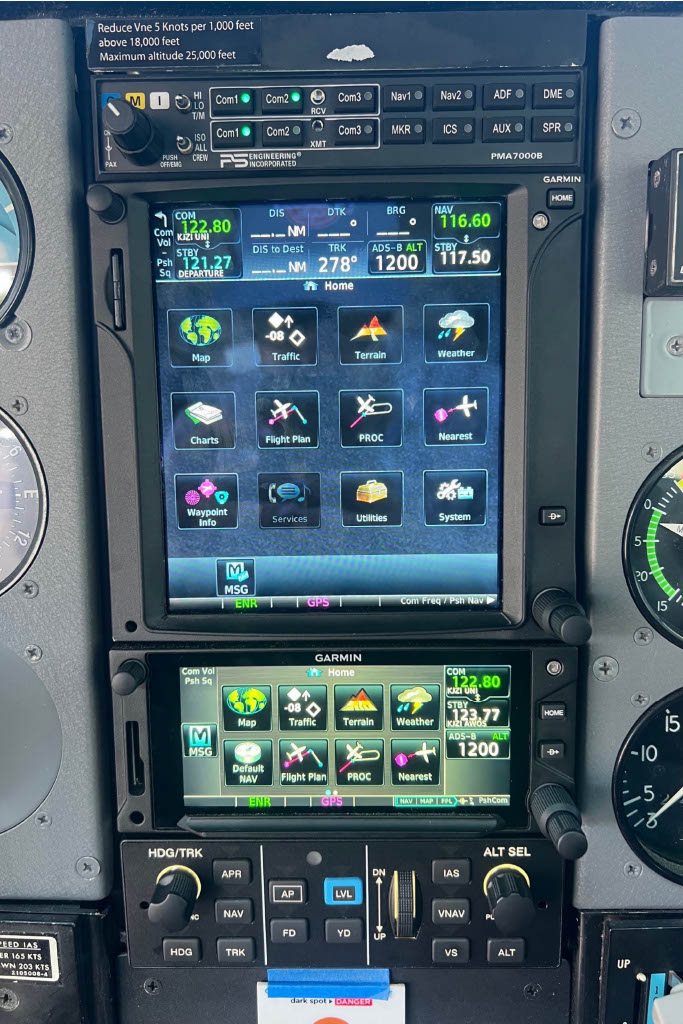

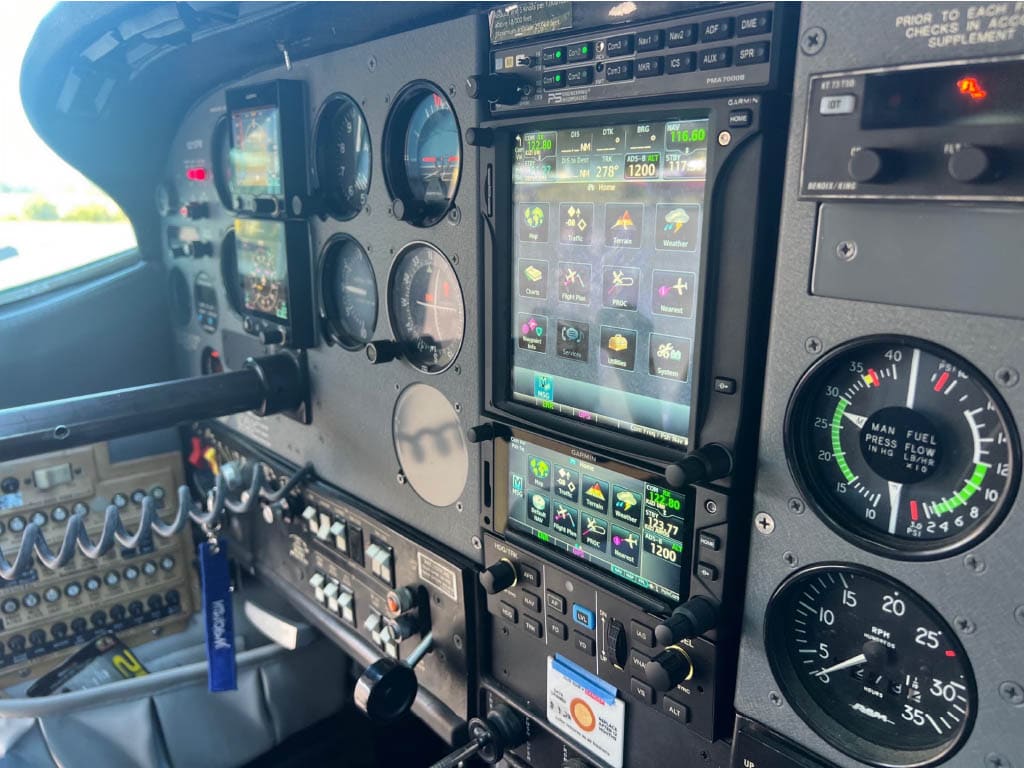

PS Engineering PMA 7000B with 6-Place Intercom System

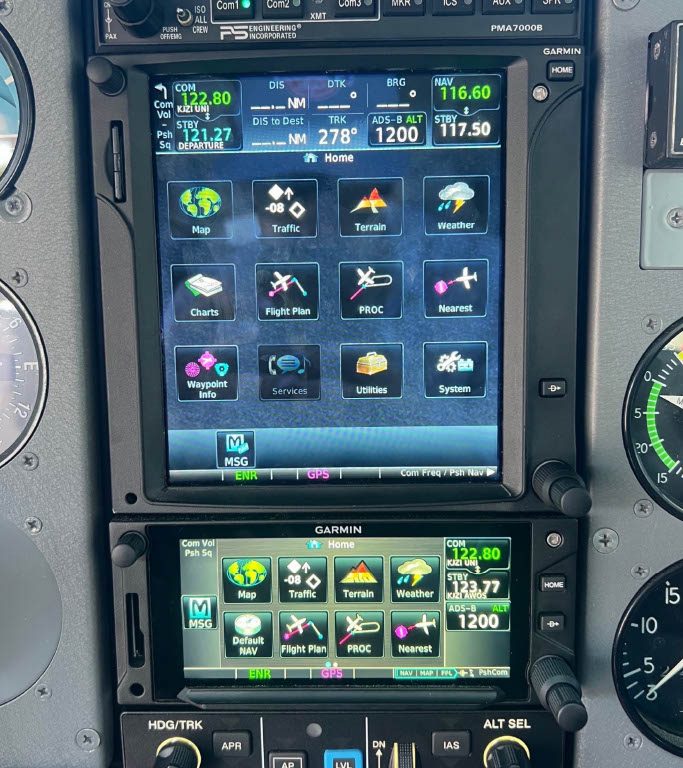

Garmin GTN-750 GPS/Nav/Com #1

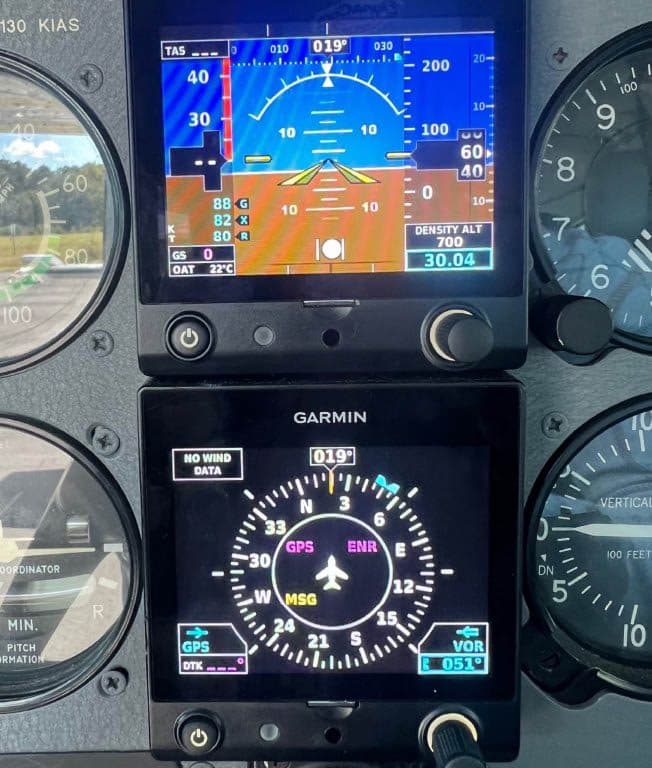

Garmin G5 HSI Nav Indicator #1
Garmin GTN-650XI GPS/Nav/Com #2
King KI-209A ILS/VOR/LOC Nav Indicator #2
Garmin GFC-500 AutoPilot linked to the 750
King KT-73 Transponder integrated in the 750/650
Garmin G5 Attitude Indicator
FlightStream 210
JPI EDM-711 Engine Analyzer
King KDI-572 DME
Garmin G5 Flight Director
Garmin GDL-88 ADSB-Out
Garmin GA-35 WAAS Antenna
-
Additional Equipment
Yes
-
Additional Equipment
Eddy Current Inspection Complied With
Flint Aero Auxiliary Fuel Tip Tanks - 33 Gallons
Heated Propeller
SMR Wing De-Ice Boots - New in 2021
Windshield Hot Plate (not currently installed)

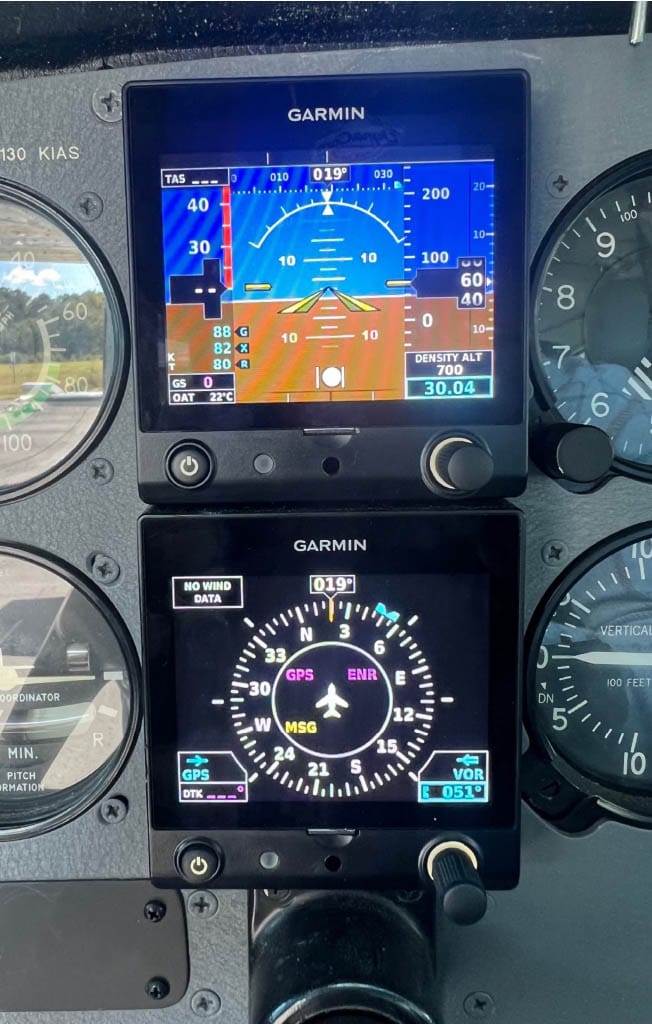

Dual G5 AHARS with GMU-11 Magnetometer - Garmin mandatory
software update complied with
GFC500 AP with upgraded servos, Low Airspeed Warnings
GMC-507 AP Computer
3 GSA-28 Upgraded Autopilot servos
Standy Altimeter, Sigma-Tek Attitude Indicator, Airspeed, Vertical Speed,
Turn and Bank
Garmin GDL-88 ADSB-Out
Garmin GA-35 WAAS Antenna
750/650 ADSB Weather and Traffic
Fuel Flow on 750
Kinsley Welding Modified Exhaust
Barton Fuel Caps
Zeftronics Alternator Control Unit
Turbo Gamijectors
Rapco Vacuum Pump
Modified Air-Oil Separator
CorrossionX/ACF-50 Treatments
Vacuum Failure Lights
CHT Temp. Warning Light
6-Place Oxygen System
De-Ice Lights
Whelen LED Landing/Taxi Lights
JPI-711 6-Cylinder CHT/EGT, TIT, Fuel Flow more EIS
JPI Data Download Plug
Rosen Visors
Yoke Electric Trim, AP Disconnect, Go Around Button, Ident Button
CoPilot Push to Talk
Wing Mounted Convex Gear Inspection Mirror
BAS AmSafe Seatbelts and Shoulder Harnesses
External Power Plug
Custom Airplane Cover
-

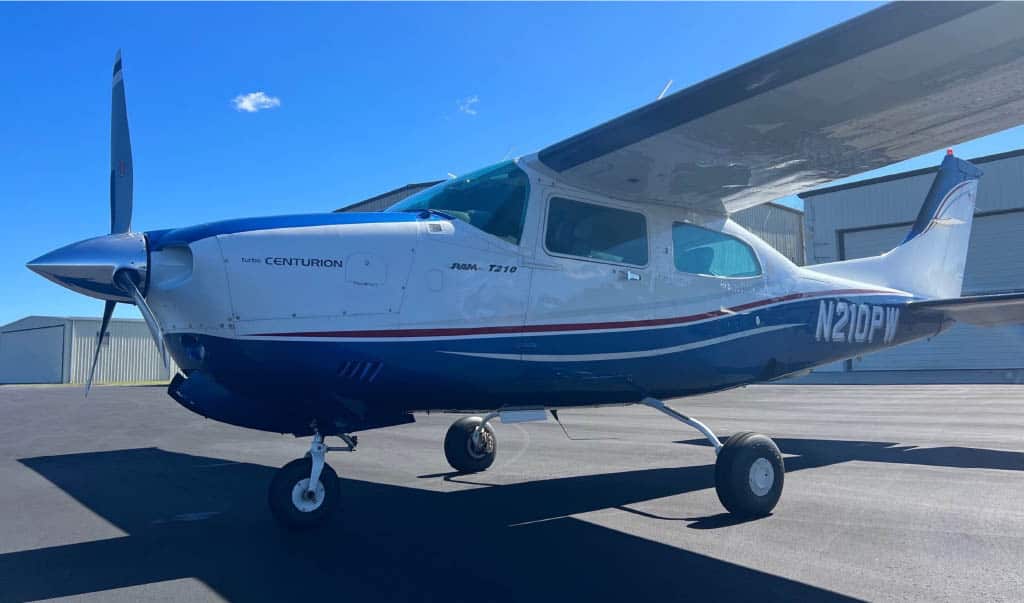

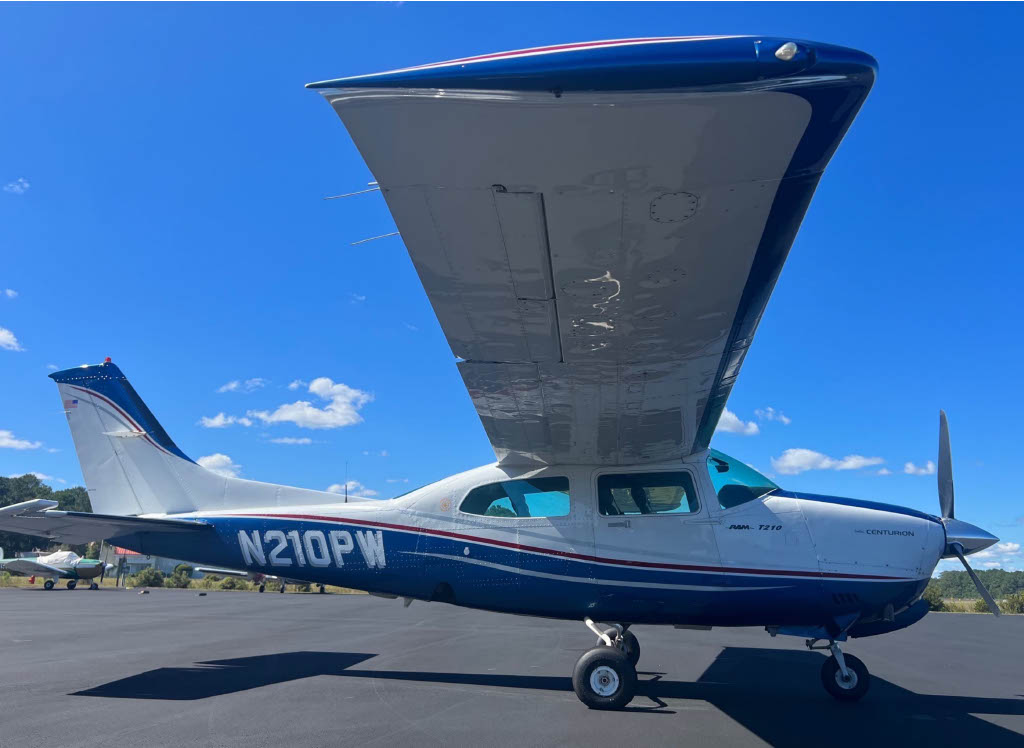

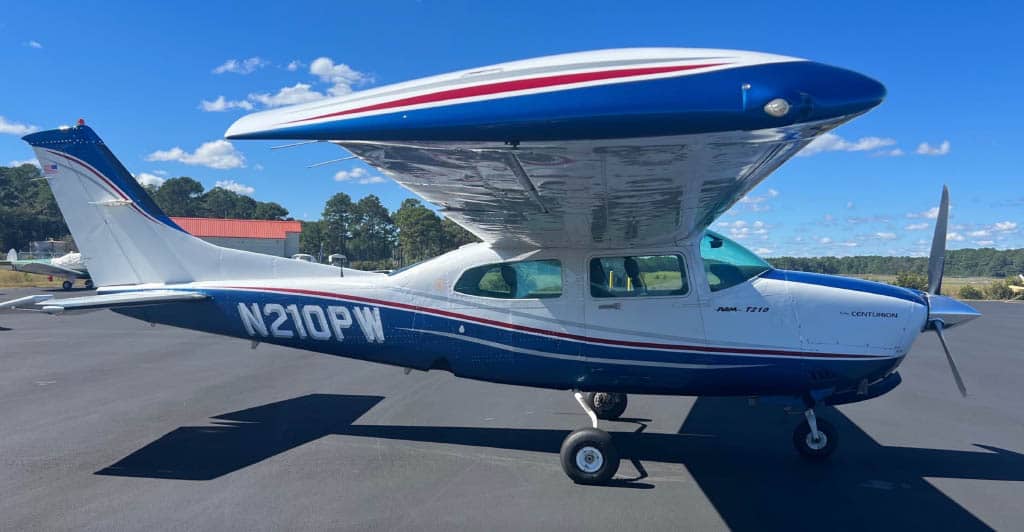

Exterior
Yes
-
Year Painted
2017
-

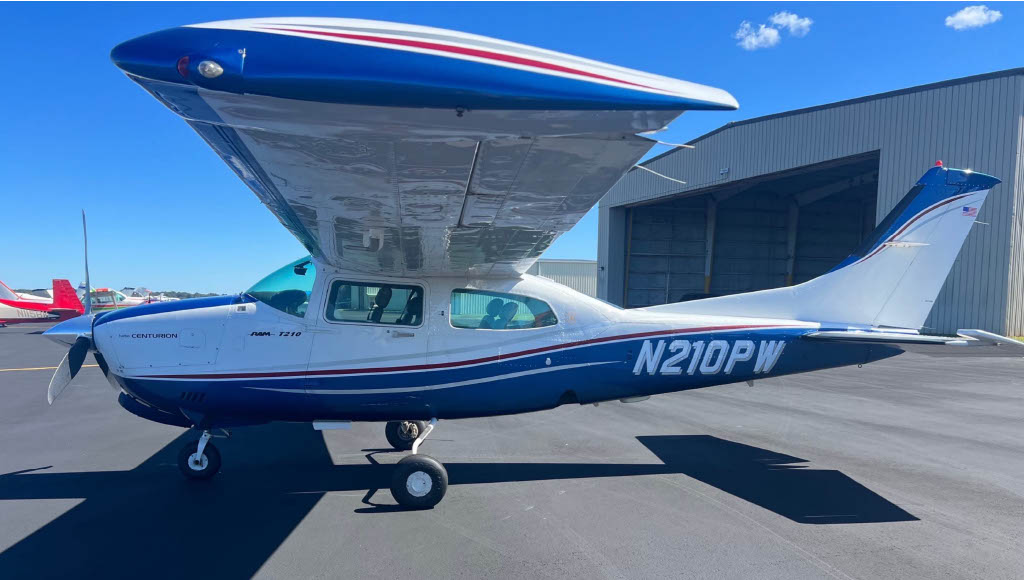

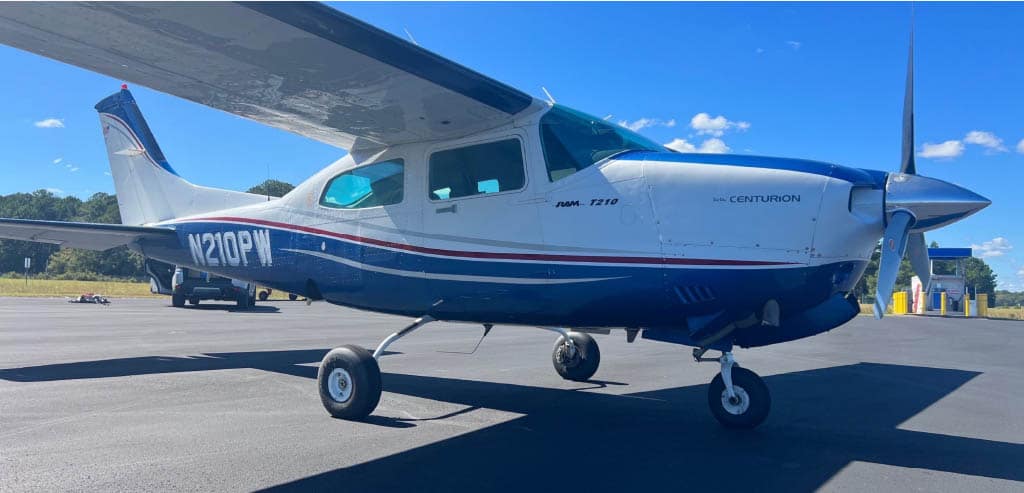

Exterior Notes

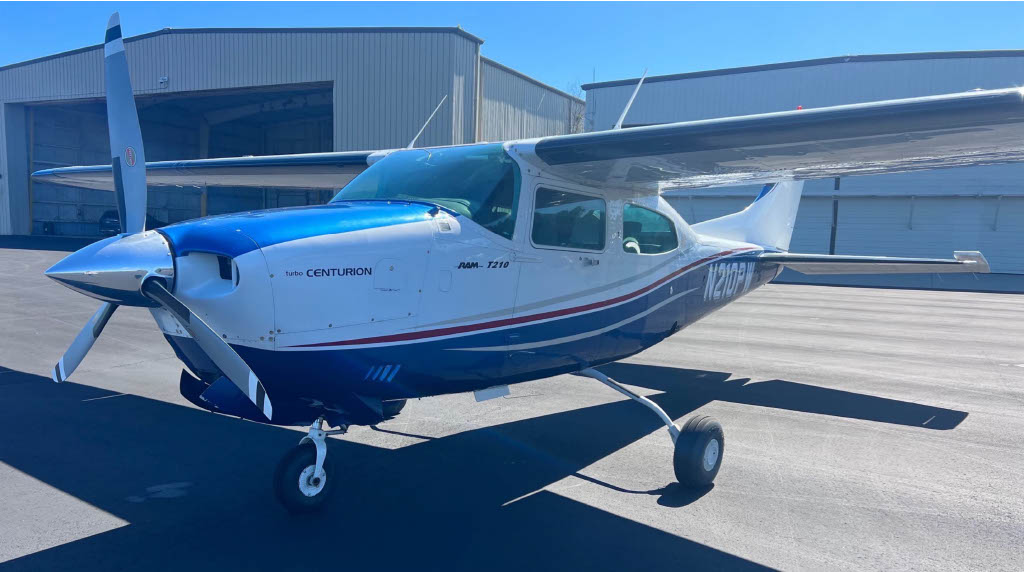

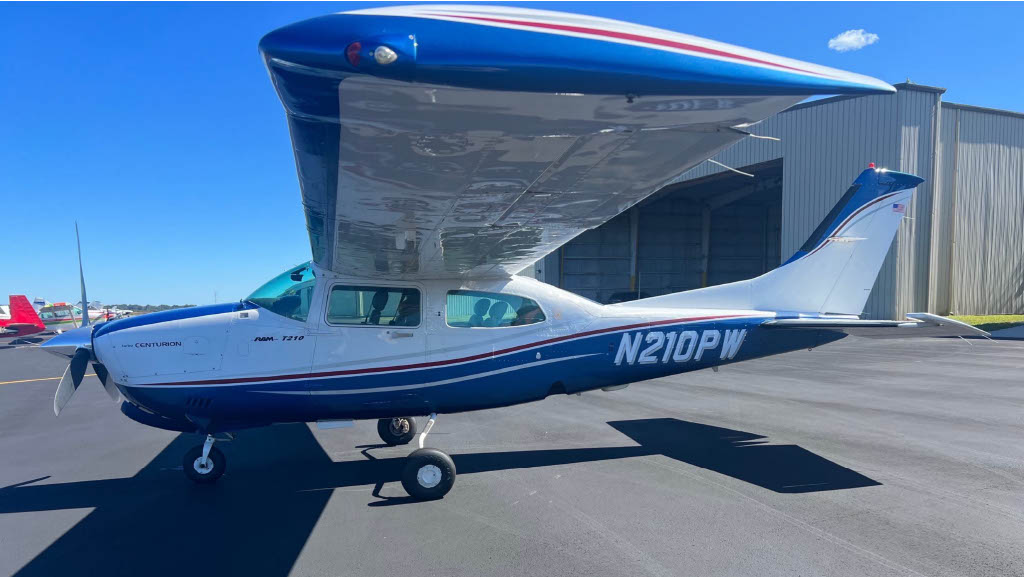

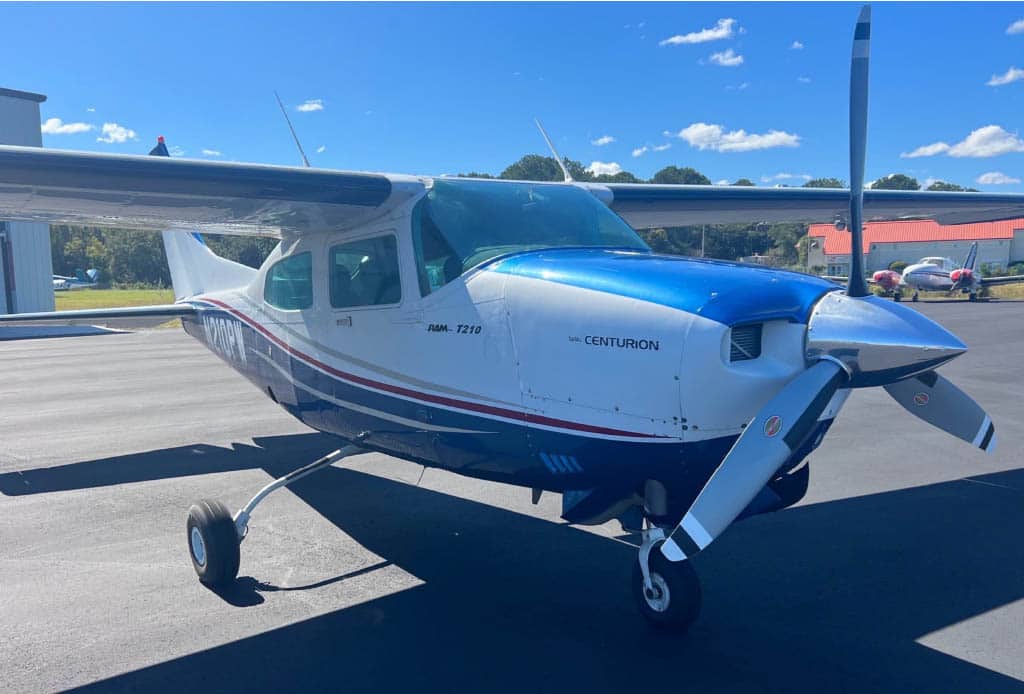

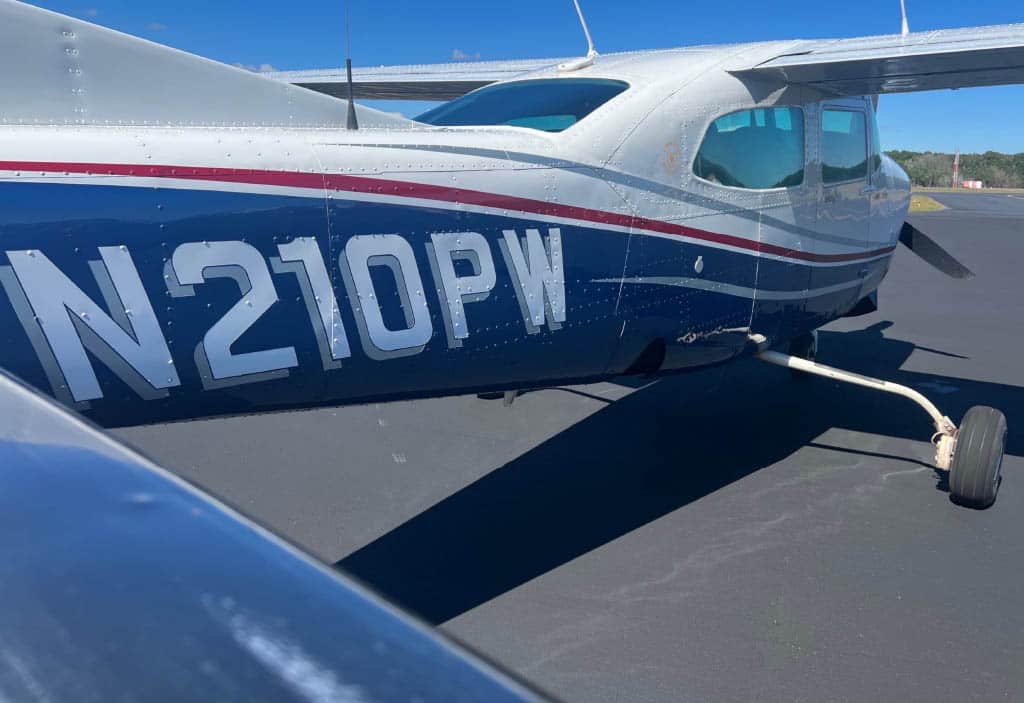

Stripped and paint Matterhorn White and Med Concorde Blue with Silver
Metallic and Red Accents in Great condition. De-Ice Boots, Heated Props.
De-Ice Lights. Whelen LED Landing/Taxi Lights. Nav/Strobe Lights.
External Power Plug. Courtesy Lights. Wing Mounted Convex Gear
Inspection Mirror.
-
Interior
Yes
-
Year Interior
2022
-
Number of Seats
6
-

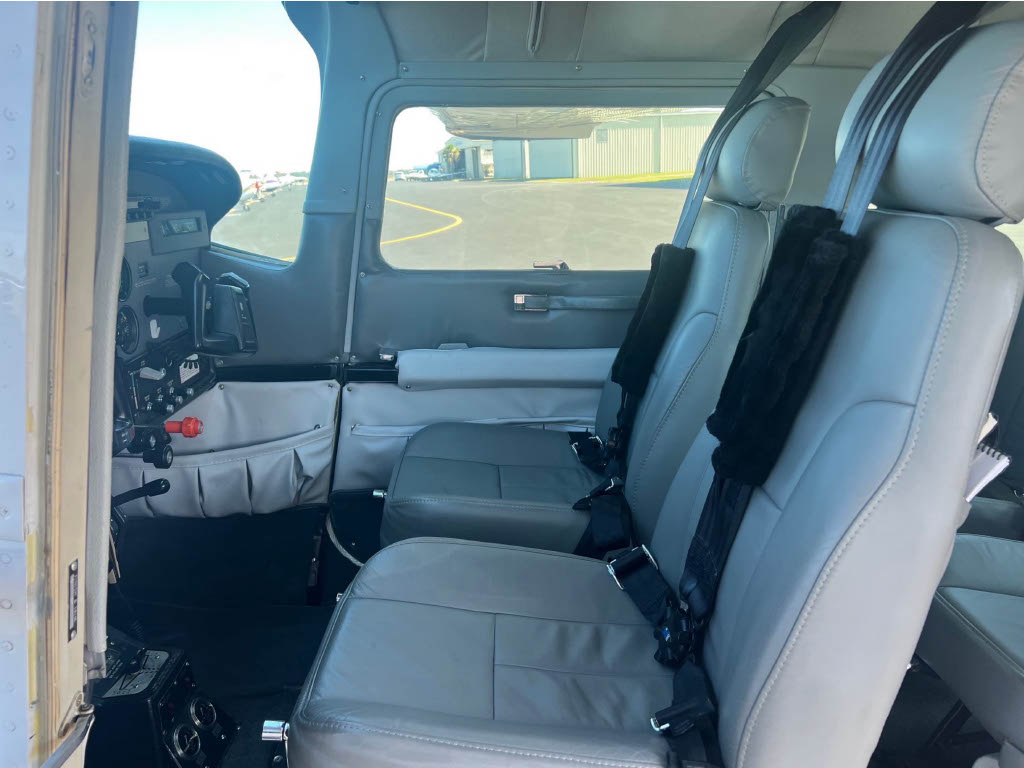

Interior Notes

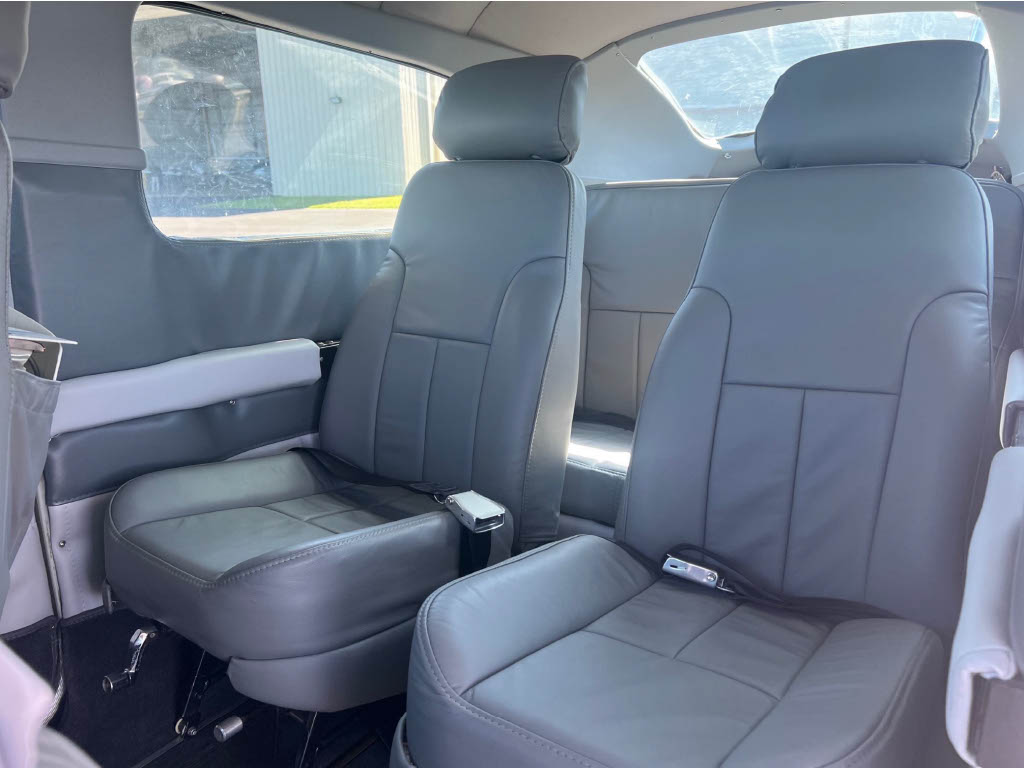

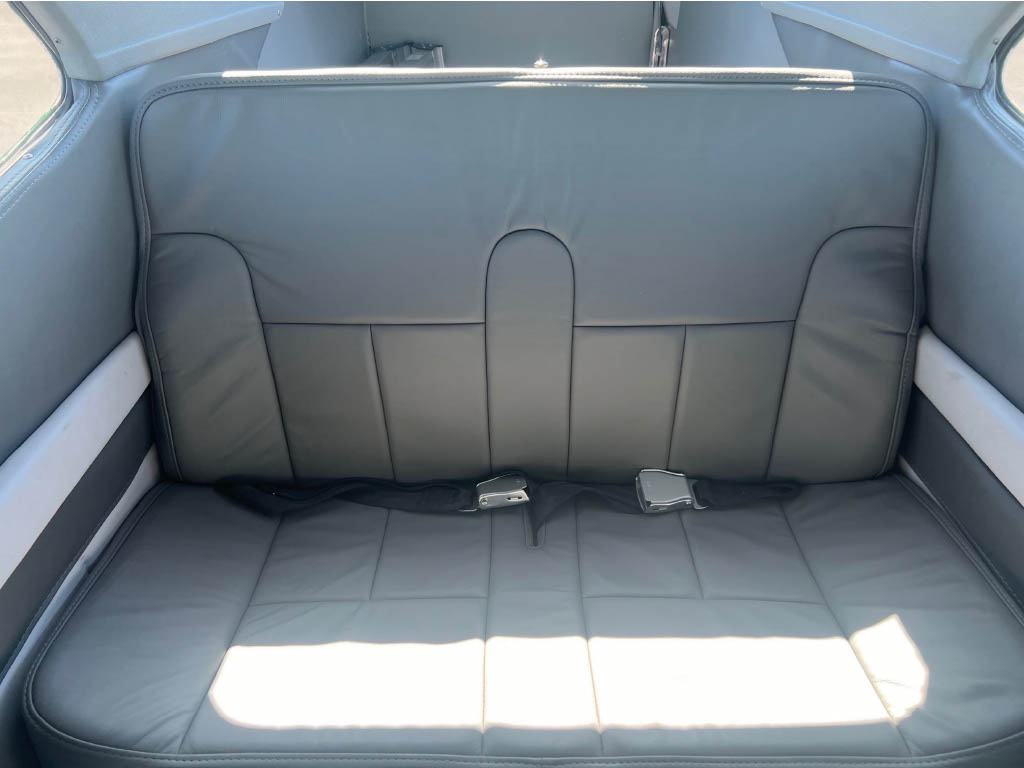

Airtex Interior completed in 2022 with Foam Soundproofing. Leather 6-
Place seating and Side panels in Excellent condition. Headliner and Carpet
in Excellent Condition. Vertically articulating seats. Pilot and Copilot BAS
AmSafe Shoulder Harnesses. BAS AmSafe passenger seatbelts. 6-Place
Oxygen system. Rosen visors. Front and Rear Air vents. Overhead
speaker. Copilot brakes
-
Inspection Status
Yes
